Description

The wide range of Molding Inserts include threaded molding inserts, ultrasonic molding inserts, knurled molding inserts, molding inserts for plastic, wood molding inserts and more. The range of standard and high quality molding inserts designed to molded into the plastic, wood or any molded components. As compared to installing inserts into a plastic part in a post molding process, the use of molding inserts eliminates the need of further installation and reduce costs.

Special Features :	» Threads as per International Go & Not Go Standards. » Deep Groove for maximum Pull Out Resistance. » Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts. » Knurling Available: » Diamond » Straight » Unidirectional » Both blind and through brass inserts are available with no minimum Qty.

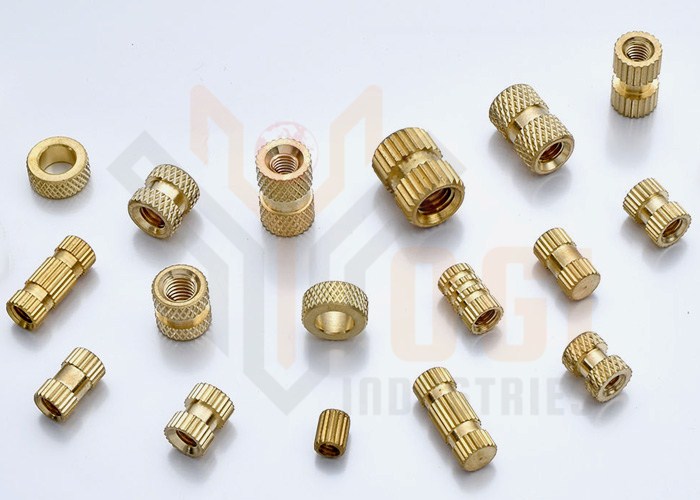

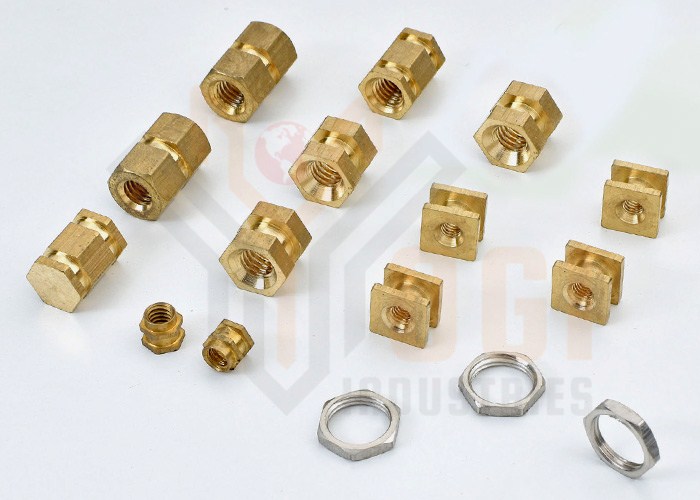

Available :	» Brass Round Knurled Inserts » Brass Hexagonal Inserts » Brass Square Inserts
Material :	» Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade » Any Special Brass Material Composition as per customers requirement
Threads :	» ISO Metric (MM Threads) | BA Threads | DIN Threads | BSW Threads (inches) | UNC & UNF Threads | GB Threads | Any threads as per custom Specified.
Size :	» Begins from M2 or equivalent threads and up to any size as per custom design or requirement
Finish And Coating :	» Natural, Nickel Plated, Tin Plated, Natural Brass, Electro-Tin, Chrome or any coating as per customer requirements.
